The Guide through system is an indispensable guiding device for the application of long-Travel length energy chains.For different applications, we offer a wide range of different modular Guide throughs to ensure high stability and long service life of the energy chain.
The Guide through system is an indispensable guiding device for the application of long-Travel length energy chains.For different applications, we offer a wide range of different modular Guide throughs to ensure high stability and long service life of the energy chain.

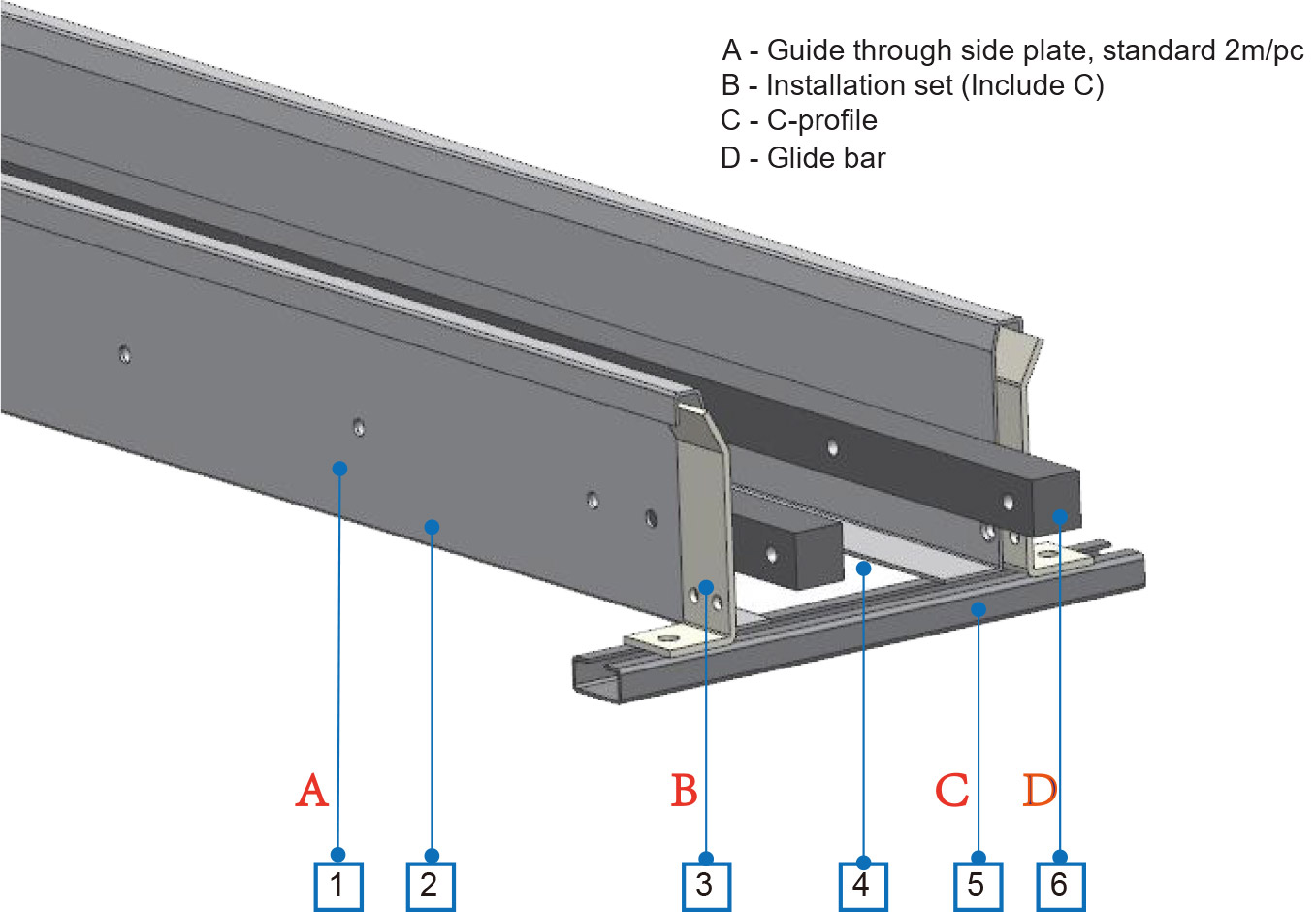

ZHEF universal guide channel has good straightness, stability, and is suitable for heavy-duty applications.
1. Two-piece design, can be flexibly adjusted according to the width of the energy chain.
2. Available in galvanized steel and stainless steel
3. The installation kit is simple and reliable, and does not require welding installation.
4. Open channel bottom, no dirt and dust accumulation
5. C-channel base for easy installation and adjustment
6. High wear-resistant mute slider with low noise and small friction coefficient ensures smooth running of the energy chain.
Calculationtype
n= half the travelling distance, calculated using the typeof unification, it needs to be an integer multiple of 2
n= number ofGuide throughs without wear-resistant strips
n= number ofGuide throughs with wear-resistant strips
n+1= number of kits installed
Please consult with ZHEF sales engineers for details.
Energy Chain Series | Inner width of energy chain (mm) | Guide channel Type (galvanized steel/stainless steel) | Mounting kit Type (galvanized steel/stainless steel) | Reinforced mounting kit Type (galvanized steel/stainless steel) |
ZF2500/ZF2580 | 57 | ZF70.1/ZF70.1st | 70. T. C200/70. TS. C200 | |
ZF2500NOP | 77 | ZF70.1/ZF70.1st | 70. T. C200/70. TS. C200 | |
ZFG2500/ZFG2580 | 103 | ZF70.1/ZF70. 1st | 70.T. C250/70.TS. C250 | |
E3200 | 50 | ZF130.2/ZF130.2st | 130. T. C250/130. TS. C250 | |
75 | ZF130.2/ZF130.2st | 130. T. C250/130. TS. C250 | ||
100 | ZF130.2/ZF130.2st | 130.T. C250/130. TS. C250 | ||
125 | ZF130.2/ZF130.2st | 130. T. C300/130. TS. C300 | ||
150 | ZF130.2/ZF130.2st | 130.T.C300/130. TS. C300 | ||
175 | ZF130.2/ZF130.2st | 130. T. C350/130. TS. C350 | ||
YFM3500/YFM3580 | 50 | ZF130.2/ZF130.2st | 130. T. C250/130. TS. C250 | |
75 | ZF130. 2/ZF130.2st | 130. T. C250/130. TS. C250 | ||
100 | ZF130.2/ZF130.2st | 130. T.C250/130. TS. C250 | ||
125 | ZF130.2/ZF130.2st | 130. T. C300/130. TS. C300 | ||
150 | ZF130.2/ZF130.2st | 130. T. C300/130. TS. C300 | ||
175 | ZF130. 2/ZF130. 2st | 130. T. C350/130. TS. C350 | ||
200 | ZF130.2/ZF130.2st | 130. T.C350/130. TS. C350 | ||
250 | ZF130.2/ZF130.2st | 130. T. C400/130.TS. C400 | ||
YFM4200/YFM4280 | 50 | ZF130.1/ZF130.1st | 130. T. C250/130. TS. C250 | |
75 | ZF130.1/ZF130. lst | 130.T. C250/130. TS. C250 | ||
100 | ZF130.1/ZF130.1st | 130. T. C250/130. TS. C250 | ||
125 | ZF130.1/ZF1301st | 130. T. C300/130. TS. C300 | ||
150 | ZF130.1/ZF130.1st | 130. T. C300/130. TS. C300 | ||
175 | ZF130.1/ZF130.1st | 130. T. C350/130. TS. C350 | ||
200 | ZF130.1/ZF130.1st | 130. T. C350/130. TS. C350 | ||
250 | ZF130.1/ZF130.1st | 130.T.C400/130. TS. C400 | ||
YFM5600/5680 | 75 | ZF170.1/ZF170.1st | 170. T. C250/170. TS. C250 | |
100 | ZF170.1/ZF170.1st | 170.T. C300/170. TS. C300 | ||
125 | ZF170.1/ZF170.1st | 170.T. C300/170. TS. C300 | ||
150 | ZF170.1/ZF170.1st | 170. T. C350/170. TS. C350 | ||
175 | ZF170.1/ZF170. 1st | 170. T.C350/170. TS. C350 | ||
200 | ZF170.1/ZF170.1st | 170. T. C400/170. TS. C400 | ||
225 | ZF170.1/ZF170. 1st | 170. T. C400/170. TS. C400 | ||
250 | ZF170.1/ZF170.1st | 170.T.C450/170. TS. C450 | ||
275 | ZF170.1/ZF170.1st | 170. T. C450/170.TS. C450 | ||
300 | ZF170.1/ZF170.1st | 170.T. C500/170. TS. C500 | ||
325 | ZF170.1/ZF170. 1st | 170. T.C500/170. TS. C500 | ||
350 | ZF170.1/ZF170. 1st | 170. T. C550/170. TS. C550 | ||
375 | ZF170.1/ZF170. 1st | 170.T. C550/170. TS. C550 | ||
400 | ZF170.1/ZF170. 1st | 170. T. C600/170. TS. C600 | ||
425 | ZF170.1/ZF170. 1st | 170. T. C600/170. TS. C600 | ||
450 | ZF170.1/ZF170. 1st | 170. T. C650/170. TS. C650 | ||
475 | ZF170.1/ZF170.1st | 170.T. C650/170. TS. C650 | ||
500 | ZF170.1/ZF170. 1st | 170. T. C700/170. TS. C700 |
Energy Chain Series | Inner width of energy chain (mm) | Guide channel Type (galvanized steel/stainless steel) | Mounting kit Type (galvanized steel/stainless steel) | Reinforced mounting kit Type (galvanized steel/stainless steel) |
ZF8000/ZF8080 | 75 | ZF220. 1/ZF220.1st | 220.T. C250/220. TS. C250 | 220. RT. C250/220. RTS. C250 |
100 | ZF220. 1/ZF220.1st | 220. T. C300/220. TS. C300 | 220. RT. C300/220. RTS. C300 | |
125 | ZF220. 1/ZF220.1st | 220. T. C300/220. TS. C300 | 220. RT. C300/220. RTS. C300 | |
150 | ZF220. 1/ZF220. 1st | 220. T. C350/220. TS. C350 | 220. RT. C350/220. RTS. C350 | |
175 | ZF220. 1/ZF220.1st | 220. T. C350/220. TS. C350 | 220. RT. C350/220. RTS. C350 | |
200 | ZF220. 1/ZF220.1st | 220.T. C400/220. TS. C400 | 220. RT. C400/220. RTS. C400 | |
225 | ZF220. 1/ZF220.1st | 220. T. C400/220. TS. C400 | 220. RT. C400/220. RTS. C400 | |
250 | ZF220. 1/ZF220.1st | 220.T. C450/220. TS. C450 | 220. RT. C450/220. RTS. C450 | |
275 | ZF220. 1/ZF220.1st | 220. T. C450/220. TS. C450 | 220. RT. C450/220. RTS. C450 | |
300 | ZF220. 1/ZF220.1st | 220. T. C500/220. TS. C500 | 220. RT. C500/220. RTS. C500 | |
325 | ZF220. 1/ZF220.1st | 220. T. C500/220. TS. C500 | 220. RT. C500/220. RTS. C500 | |
350 | ZF220. 1/ZF220.1st | 220.T. C550/220. TS. C550 | 220. RT. C550/220. RTS. C550 | |
375 | ZF220.1/ZF220.1st | 220. T. C550/220.TS.C550 | 220. RT. C550/220. RTS. C550 | |
400 | ZF220. 1/ZF220.1st | 220. T. C600/220. TS. C600 | 220. RT. C600/220. RTS. C600 | |
425 | ZF220. 1/ZF220.1st | 220. T. C600/220. TS. C600 | 220. RT. C600/220. RTS. C600 | |
450 | ZF220. 1/ZF220.1st | 220.T. C650/220. TS. C650 | 220. RT. C650/220. RTS. C650 | |
475 | ZF220. 1/ZF220.1st | 220. T. C650/220. TS. C650 | 220. RT. C650/220. RTS. C650 | |
500 | ZF220. 1/ZF220.1st | 220.T. C700/220. TS. C700 | 220. RT. C700/220. RTS. C700 | |
ZF8000/ZF8080 | 75 | ZF300. 1/ZF300.1st | 300. RT. CG10. 250 300. RTS. CG10. 250 | |
100 | ZF300. 1/ZF300.1st | 300. RT. CG10. 300 300. RTS. CG10. 300 | ||
125 | ZF300. 1/ZF300.1st | 300. RT. CG10. 300 300. RTS. CG10.300 | ||
150 | ZF300. 1/ZF300.1st | 300. RT. CG10.350 300. RTS. CG10.350 | ||
175 | ZF300. 1/ZF300.1st | 300. RT. CG10.350 300. RTS. CG10. 350 | ||
200 | ZF300. 1/ZF300.1st | 300. RT. CG10.400 300. RITS. CG10.400 | ||
225 | ZF300. 1/ZF300.1st | 300. RT. CG10. 400 300. RTS. CG10.400 | ||
250 | ZF300. 1/ZF300.1st | 300. RT. CG10. 450 300. RTS. CG10.450 | ||
275 | ZF300.1/ZF300.1st | 300. RT. CG10.450 300. RTS. CG10.450 | ||
300 | ZF300. 1/ZF300.1st | 300. RT. CG10.500 300. RTS. CG10.500 | ||
325 | ZF300. 1/ZF300.1st | 300. RT.CG10. 500 300. RTS. CG10.500 | ||
350 | ZF300. 1/ZF300.1st | 300. RT.CG10.550 300. RTS. CG10.550 | ||
375 | ZF300. 1/ZF300.1st | 300. RT. CG10.550 300. RTS. CG10.550 | ||
400 | ZF300. 1/ZF300.1st | 300. RT. CG10. 600 300. RTS. CG10.600 | ||
425 | ZF300. 1/ZF300.1st | 300. RT. CG10.600 300. RTS. CG10.600 | ||
450 | ZF300. 1/ZF300.1st | 300. RT. CG10. 650 300. RTS. CG10.650 | ||
475 | ZF300. 1/ZF300.1st | 300. RT. CG10.650 300. RTS. CG10.650 | ||
500 | ZF300. 1/ZF300.1st | 300. RT. CG10. 700 300. RTS. CG10.700 |
Note: The guide groove installation kit for models 300.1 and 300.1st comes standard with 10 # channel steel at the bottom
